API flanges are a type of flange that is designed to meet the standards of the American Petroleum Institute (API). They are typically used in high-pressure and high-temperature applications, such as oil and gas production, petrochemical processing, and power generation.

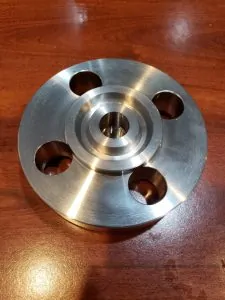

API Flanges

Image Source: Texas Flange

What are API Flanges?

API flanges are specialized flanges designed to handle the high-pressure and high-temperature requirements of the oil and gas industry, particularly in offshore drilling and refining operations. API flanges are made from stronger materials and have thicker walls.  API flanges are also more likely to be forged or cast in one piece, which makes them stronger and less prone to leakage. As a result of their superior strength and durability, API flanges are often used in applications where high pressures and temperatures are present, such as

  • Offshore oil drilling
  • Petrochemical processing,
  • Power generation
  • Nuclear reactors

Types of API flanges

There are several different types of API flanges, each of which is designed for a specific application. Some of the most common types of API flanges include:

  • Weld neck flanges: These flanges have a long neck welded to the pipe.
  • Threaded flanges: These flanges are screwed onto the end of a pipe.
  • Blind flanges: These flanges are used to close off the end of a pipe.

API Flanges in the Oil and Gas Industry

API flanges are a critical component in the oil and gas industry. They connect pipes and vessels that carry crude oil, natural gas, and other hazardous materials. API flanges are designed to withstand high pressures and temperatures, making them ideal for use in the oil and gas industry.

Applications of API flanges:

  • Upstream: API flanges are used in various upstream applications, such as wellheads, gathering systems, and processing facilities.
  • Midstream: API flanges are also used in midstream applications, such as pipelines, storage facilities, and compression stations.
  • Downstream: API flanges are also used in downstream applications, such as refineries, petrochemical plants, and power plants.

Safety Considerations of API Flanges:

  • API flanges must be properly selected for the specific application.
  • API flanges must be properly installed and maintained.
  • API flanges must be inspected regularly for signs of wear and tear.
  • API flanges must be replaced if they are damaged or worn.

Tips for selecting and using API flanges:

  • Select the appropriate API flange type and material for the specific application.
  • Ensure that the API flange is the application’s correct pressure and temperature ratings.
  • Use the correct type of gasket and sealant for the API flange.
  • Install the API flange according to the manufacturer’s instructions.
  • Inspect the API flange regularly for signs of wear and tear.
  • Replace the API flange if it is damaged or worn.

Benefits of API Flanges

  1. Robust Construction: API flanges are built to withstand extreme conditions, ensuring their structural integrity in challenging environments.
  2. Reliability: These flanges are known for their unwavering dependability, reducing the risk of downtime, maintenance, and safety issues.
  3. Safety Assurance: API flanges prevent leaks, enhancing safety and reducing the potential for accidents and environmental harm.
  4. High-Pressure and High-Temperature Tolerance: API flanges are designed to handle extreme pressures and temperatures to ensure efficient material flow.
  5. Compatibility with Industry Standards: API flanges adhere to stringent industry standards, ensuring uniformity and quality.
  6. Versatile Application: Beyond the oil and gas sector, API flanges find use in diverse applications requiring robust and reliable connections.

Longevity and Cost Savings: API flanges offer long-term cost savings due to their durability and reduced maintenance needs.

API Flanges vs. ANSI/ASME Flanges

API flanges and ANSI/ASME flanges are used in various industries. However, there are some key differences between the two types of flanges.

API flanges are designed to meet the American Petroleum Institute (API) standards. They are typically used in high-pressure and high-temperature applications.

ANSI/ASME flanges are designed to meet the standards of the American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME). They are typically used in a wider range of applications than API flanges.

A table summarizes the key differences between API flanges and ANSI/ASME flanges:

Feature

API flanges

ANSI/ASME flanges
Pressure ratingHigherLower
Temperature ratingHigherLower
Material strengthStrongerWeaker
Wall thicknessThickerThinner
Manufacturing methodMore likely to be forged or cast in one pieceIt is more likely to be fabricated from multiple parts
CostMore expensiveLess expensive
AvailabilityMore difficult to find in stockEasier to find in stock
Industry acceptanceWidely accepted in the oil and gas industryMore widely accepted in other industries

FAQs (Frequently Asked Questions)

Q1. What are API flanges primarily used for?

API flanges are primarily used in industries with high-pressure and high-temperature conditions, such as offshore oil drilling and refineries.

Q2. Are ANSI/ASME flanges suitable for high-pressure environments?

While ANSI/ASME flanges can handle certain pressure levels, they are not specifically designed for extreme pressure conditions in offshore drilling or high-pressure oil and gas pipelines. API flanges are better suited for these situations.

Q3. Can I use API flanges for applications outside the oil and gas industry?

API flanges are highly specialized for the oil and gas sector. While they can technically be used in other applications, ANSI/ASME flanges offer greater versatility. They may be a more practical choice in non-industry-specific settings.

Q4. Are ANSI/ASME flanges less safe than API flanges?

Both API and ANSI/ASME flanges are designed with safety in mind. However, API flanges are engineered to meet the unique safety demands of high-pressure and high-temperature environments, making them a preferred choice.

Q5. What factors should I consider when choosing between API and ANSI/ASME flanges?

Consider the specific industry, application requirements, size, type, pressure ratings of the flanges needed, and ease of installation and maintenance for your project.

Q6. Are API flanges more expensive than ANSI/ASME flanges?

API flanges are often more specialized and may come at a higher cost due to their engineering for extreme conditions. ANSI/ASME flanges are typically more cost-effective for applications outside the oil and gas sector.

Conclusion:

In conclusion, API Flanges valuable insights into their critical role in ensuring the safety and functionality of high-pressure and high-temperature operations. They are made from high-quality materials and are manufactured to very tight tolerances. API flanges are also available in various types, materials, pressure ratings, temperature ratings, and facing types to meet the specific needs of each application.
