API 6A flanges are critical components specifically engineered for the most demanding applications in the oil and gas industry. Manufactured according to the American Petroleum Institute (API) 6A specification, these flanges are designed to withstand extreme pressures, temperatures, and corrosive environments encountered in wellhead equipment, Christmas trees, and production systems. Unlike standard ASME/ANSI flanges used in general industrial applications, API 6A flanges begin their pressure ratings at a minimum of 2,000 PSI, making them essential for upstream oil and gas operations where failure is not an option.
Understanding API 6A flange sizes and dimensions is crucial for engineers, procurement specialists, and maintenance personnel working in hazardous environments. These flanges feature specialized designs, including specific bore sizes, bolt hole patterns, and sealing mechanisms that differentiate them from other flange standards. This comprehensive guide provides detailed dimensional data, explains key specifications, and offers practical selection guidance to ensure safe and compliant operation in high-pressure systems.
Table of Contents
Key Specifications and Pressure Classes
API 6A flanges are categorized by type and pressure class, which determines their suitable applications and performance characteristics. The standard covers two primary flange types: 6B and 6BX.
- Type 6B Flanges: Standard flanges with pressure classes of 2,000, 3,000, and 5,000 PSI. These flanges can be used with either ring gaskets (R or RX).
- Type 6BX Flanges: Enhanced flanges with pressure classes of 5,000, 10,000, 15,000, and 20,000 PSI. These require pressure-energized seal rings (BX gaskets) and feature a higher hub to provide additional strength for extreme pressure applications.
A critical distinction between API and ASME/ANSI flanges is their pressure rating approach. While they may share similar dimensions, API 6A flanges are rated for significantly higher pressures. For example, an API 6A flange with the same physical dimensions as an ASME B16.5 Class 600 flange is rated for 2,000 PSI, and one matching a Class 1500 flange is rated for 5,000 PSI.
API 6A Flange Size Ranges
API 6A flanges are available in specific size ranges that differ from standard pipe flanges. The nominal sizes follow a unique numbering system based on the flange’s through bore rather than standard pipe sizes.
Table: Standard API 6A Flange Size Range
| Flange Type | Standard Size Range | Common Applications |
|---|---|---|
| Type 6B | 1-13/16″ to 21-1/4″ | Wellhead equipment, production manifolds, lower pressure systems |
| Type 6BX | 1-13/16″ to 30″ | High-pressure wellheads, Christmas trees, choke and kill lines |
The most common API 6A flange sizes include 2-1/16″, 2-9/16″, 3-1/8″, 4-1/16″, 5-1/8″, 7-1/16″, 9″, 11″, 13-5/8″, 16-3/4″, 18-3/4″, 21-1/4″, 26-3/4″, and 30″ . It’s important to note that these dimensions refer to the nominal bore size rather than the overall flange dimensions.
Detailed Dimension Tables
The following tables provide key dimensional data for commonly used API 6A flanges across different pressure classes. All dimensions are in millimeters unless otherwise specified.
API 6A Type 6B 2000 PSI (13.8 MPa) Flange Dimensions
Table: 2000 PSI Flange Dimensions (Select Sizes)
| Size | B (Bore) | OD | BC (Bolt Circle) | No. of Bolts | T (Thickness) |
|---|---|---|---|---|---|
| 2-1/16″ | 53.2 | 165 | 127 | 8 | 33.4 |
| 2-9/16″ | 65.9 | 190 | 149.2 | 8 | 36.6 |
| 3-1/8″ | 81.8 | 210 | 168.3 | 8 | 39.7 |
| 4-1/16″ | 108.7 | 275 | 215.9 | 8 | 46.1 |
| 5-1/8″ | 131.0 | 330 | 266.7 | 8 | 52.4 |
| 7-1/16″ | 181.8 | 355 | 292.1 | 12 | 55.6 |
| 9″ | 229.4 | 420 | 349.3 | 12 | 63.5 |
| 11″ | 280.2 | 510 | 431.8 | 16 | 71.5 |
| 13-5/8″ | 346.9 | 560 | 489 | 20 | 74.7 |
API 6A Type 6B 3000 PSI (20.7 MPa) Flange Dimensions
Table: 3000 PSI Flange Dimensions (Select Sizes)
| Size | B (Bore) | OD | BC (Bolt Circle) | No. of Bolts | T (Thickness) |
|---|---|---|---|---|---|
| 2-1/16″ | 53.2 | 215 | 165.1 | 8 | 46.1 |
| 2-9/16″ | 65.9 | 245 | 190.5 | 8 | 49.3 |
| 3-1/8″ | 81.8 | 240 | 190.5 | 8 | 46.1 |
| 4-1/16″ | 108.7 | 290 | 235.0 | 8 | 52.4 |
| 5-1/8″ | 131.0 | 350 | 279.4 | 8 | 58.8 |
| 7-1/16″ | 181.8 | 380 | 317.5 | 12 | 63.5 |
| 9″ | 229.4 | 470 | 393.7 | 12 | 71.5 |
| 11″ | 280.2 | 545 | 469.9 | 16 | 77.8 |
| 13-5/8″ | 346.9 | 610 | 533.4 | 20 | 87.4 |
API 6A Type 6B 5000 PSI (34.5 MPa) Flange Dimensions
Table: 5000 PSI Flange Dimensions (Select Sizes)
| Size | B (Bore) | OD | BC (Bolt Circle) | No. of Bolts | T (Thickness) |
|---|---|---|---|---|---|
| 2-1/16″ | 53.2 | 215 | 165.1 | 8 | 46.1 |
| 2-9/16″ | 65.9 | 245 | 190.5 | 8 | 49.3 |
| 3-1/8″ | 81.8 | 265 | 203.2 | 8 | 55.6 |
| 4-1/16″ | 108.7 | 310 | 241.3 | 8 | 62.0 |
| 5-1/8″ | 131.0 | 375 | 292.1 | 8 | 81.0 |
| 7-1/16″ | 181.8 | 395 | 317.5 | 12 | 92.1 |
| 9″ | 229.4 | 485 | 393.7 | 12 | 103.2 |
| 11″ | 280.2 | 585 | 482.6 | 12 | 119.1 |
Flange Types and Configurations
API 6A standard covers several flange types, each designed for specific applications and connection requirements .
- Weld Neck Flanges: Feature a long tapered hub that is butt-welded to the pipe, providing excellent stress distribution in high-pressure service. Ideal for severe service conditions with high mechanical loads.
- Blind Flanges: Used to seal the end of piping systems or pressure vessel openings, allowing for future expansion or inspection access. Essential for pressure testing and system isolation.
- Threaded Flanges: Feature internal threads that connect to externally threaded pipes or components without welding. Suitable for applications where welding is impractical or for non-critical services.
- Socket Weld Flanges: Include a socket into which the pipe is inserted and then fillet-welded. Provide good flow characteristics and stronger connections than threaded flanges for small-diameter piping.
- Slip-On Flanges: Slide over the pipe and are secured with two fillet welds. Offer easy alignment and are more cost-effective for lower pressure applications within the API range.
Material Specifications
API 6A flanges require materials with high strength, excellent corrosion resistance, and superior mechanical properties to perform in demanding oil and gas environments .
- Carbon Steel: ASTM A105 is commonly used for standard applications with moderate corrosion concerns.
- Alloy Steel: ASTM A182 F5, F9, F11, F22, F91, and AISI 4130/4140 are specified for high-strength applications, with AISI 4130 required for 6BX flanges with minimum yield strength of 75K.
- Stainless Steel: ASTM A182 F304/F304L, F316/F316L provide enhanced corrosion resistance for sour service or corrosive environments.
- Special Alloys: Duplex, Super Duplex, Inconel, Monel, Hastelloy, and other nickel-based alloys are available for extreme corrosive conditions or specific metallurgical requirements.
Sealing Systems and Face Types
API 6A flanges primarily use Ring Type Joint (RTJ) sealing systems for maximum pressure containment . The standard specifies several face configurations:
- Ring Type Joint (RTJ): Feature a groove that accommodates a metal ring gasket, which deforms under bolt load to create a metal-to-metal seal. This is the most common facing for high-pressure API 6A applications.
- Raised Face (RF): Have a small raised section around the bore where the gasket is placed. Less common in API 6A applications but available for specific uses.
- Flat Face (FF): Feature a completely flat sealing surface. Rarely used in high-pressure API applications.
The 6BX flanges require pressure-energized BX gaskets which provide superior sealing performance through a combination of initial bolt preload and internal pressure activation.
Applications in the Oil and Gas Industry
API 6A flanges are specifically designed for upstream oil and gas applications where pressure containment is critical to safety and environmental protection .

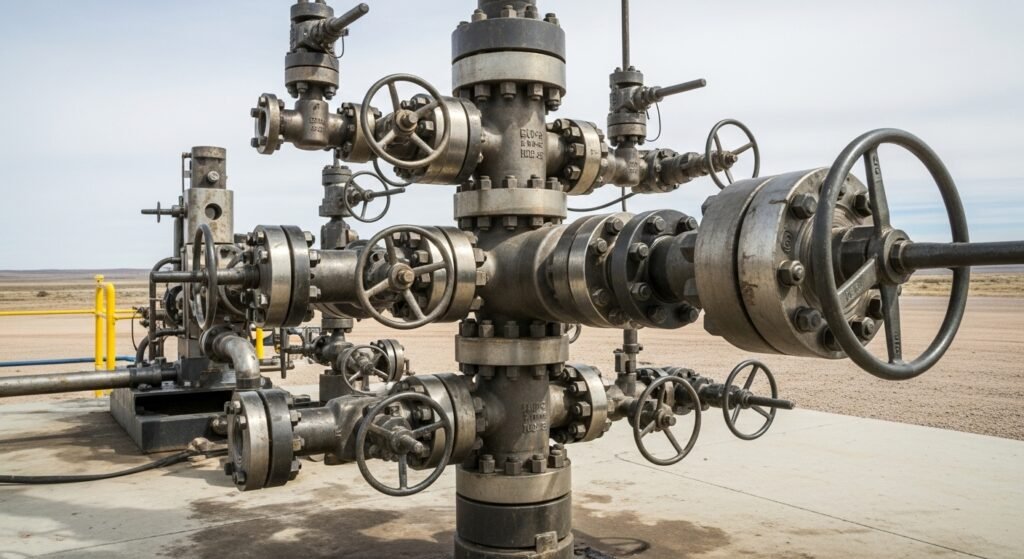

- Wellhead Assemblies: Christmas trees, casing heads, and tubing heads where multiple pressure barriers are required.
- Drilling Equipment: Blowout preventers (BOPs), choke and kill manifolds, and drilling risers.
- Production Systems: Production manifolds, flow lines, and separation equipment.
- Testing and Injection Equipment: High-pressure pumps, treaters, and chemical injection skids.
Comparison with ASME/ANSI Flanges
While API 6A and ASME/ANSI flanges may appear similar, they are generally not interchangeable due to significant differences in design philosophy, pressure ratings, and application requirements.
Table: API 6A vs. ASME/ANSI Flange Comparison
| Parameter | API 6A Flanges | ASME/ANSI Flanges |
|---|---|---|
| Primary Application | Oil and gas upstream operations | General industrial processes |
| Pressure Rating Basis | Specific pressure classes (2000, 3000, 5000 PSI) | Material and temperature dependent |
| Standard Size Range | 1-13/16″ to 30″ | 1/2″ to 24″ (ASME B16.5) |
| Common Sealing Method | Ring Type Joint (RTJ) | Raised Face (RF) with various gaskets |
| Typical Materials | High-strength alloy steels | Carbon steel, stainless steel, various alloys |
| Gasket Requirement | Mandatory specific ring gaskets | Various gasket types for different services |
For a more detailed comparison between these flange types, see our comprehensive guide on API Flanges vs ANSI Flanges .
Selection Considerations
Choosing the correct API 6A flange requires careful consideration of several factors:
- Operating Pressure and Temperature: Select a pressure class that exceeds maximum system operating conditions with an appropriate safety margin.
- Service Fluid Compatibility: Consider corrosion potential, H₂S content (sour service), CO₂, and other corrosive elements that affect material selection.
- Environmental Conditions: Account for external factors such as marine environments, arctic conditions, or desert operations.
- System Dynamics: Consider vibration, thermal cycling, pressure surges, and other dynamic loads that affect flange performance.
- Regulatory Compliance: Ensure flanges meet all applicable safety standards, certification requirements, and environmental regulations.
Frequently Asked Questions (FAQs)
1. Are API 6A flanges interchangeable with ASME/ANSI flanges?
Generally no. While some dimensional aspects may be similar, the pressure ratings, materials, and sealing systems differ significantly. API 6A flanges are specifically engineered for much higher pressure applications in the oil and gas industry.
2. What do the numbers like 2-1/16″ and 3-1/8″ represent in API 6A flange sizes?
These numbers represent the nominal bore size of the flange in inches, not the pipe size. This unique numbering system is specific to API 6A wellhead and Christmas tree equipment.
3. What is the difference between 6B and 6BX flange types?
Type 6B flanges are standard flanges used with R or RX ring gaskets, while Type 6BX flanges are designed for higher pressures and require pressure-energized BX gaskets. 6BX flanges also have a higher hub design for increased strength.
4. What materials are commonly used for API 6A flanges?
Common materials include ASTM A105 carbon steel, ASTM A182 alloy steels (F5, F9, F11, F22, F91), AISI 4130 for high-strength applications, and various stainless steels and nickel alloys for corrosive services.
5. What pressure classes are available for API 6A flanges?
API 6A flanges are available in pressure classes of 2,000, 3,000, 5,000, 10,000, 15,000, and 20,000 PSI, with 2,000, 3,000, and 5,000 PSI being the most common for Type 6B flanges.
6. Can I use standard ASME B16.20 ring gaskets with API 6A flanges?
No, API 6A flanges require specific ring gaskets manufactured to API 6A specifications. Using incorrect gaskets can compromise seal integrity and safety.
7. What are the temperature limitations for API 6A flanges?
Temperature ratings depend on the specific material, but API 6A flanges are typically rated for service temperatures from -75°F to 250°F (-59°C to 121°C) for standard applications, with special materials available for extended temperature ranges.
Conclusion
API 6A flanges represent the gold standard for pressure containment in upstream oil and gas applications. Their specialized design, rigorous material requirements, and precise dimensional specifications ensure reliable performance in the world’s most demanding operating environments. Understanding API 6A flange sizes, dimensions, and selection criteria is essential for ensuring safety, reliability, and regulatory compliance in high-pressure systems.
When specifying API 6A flanges, always consult the latest edition of the API 6A standard, work with certified suppliers, and ensure proper installation by qualified personnel. The margin of safety engineered into these critical components depends on correct selection, installation, and maintenance practices throughout their service life.
